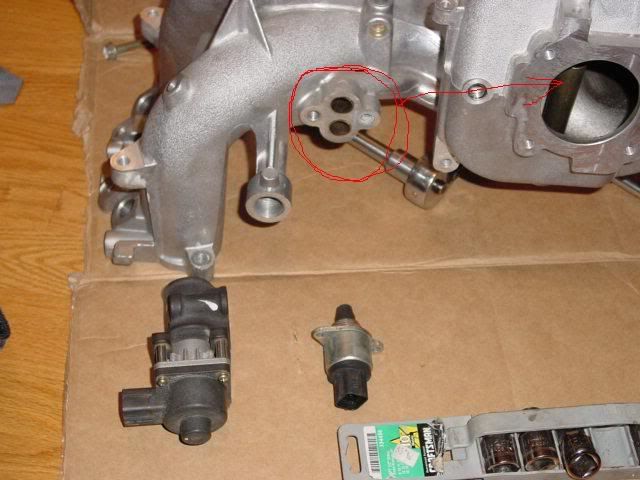

Here is a shot of the '05 manifold. On the floor to the left is the IAC and on the right, next to it, is the IAC from an '00. Circled in the picture is where the IAC mounts - it has one passage that leads to the pipe I drew an arrow to and the other leads to the penile looking thing to the left of the mounting location. I'm guessing the piece on the left must lead to the intake to allow air in when the IAC opens up.
