Ground for passenger seat.




This plug is on the passenger side foot well. The blue wire on top is where you pin the wire into to have a OEM relayed and fused system. The same wire in the corresponding plug goes to the pink plug near the AC under-dash box. I found a wire that worked with the plug so I could pin it right in and still retain the factory look. Note: make sure you route the wire with the rest of the wires and not behind the bracket as shown in the picture.




******************

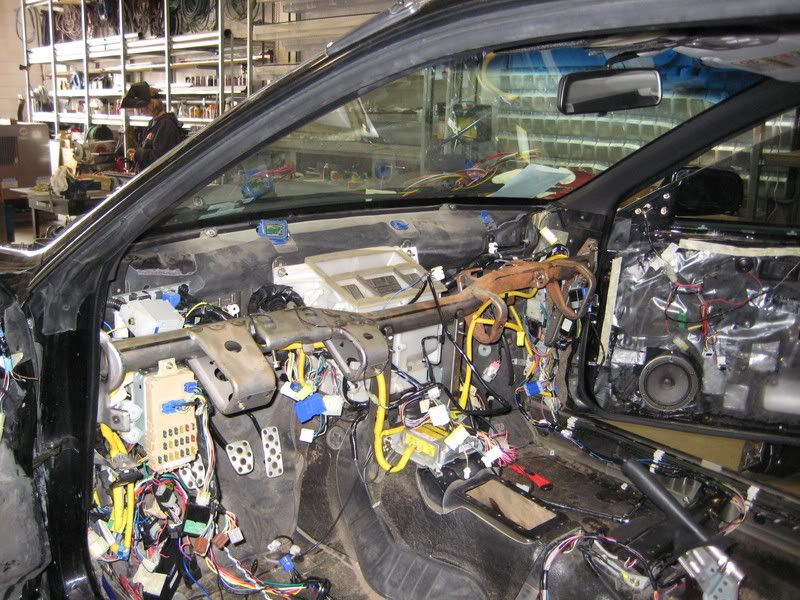

Some random pictures as I’m putting the dash back together. Note the fuel pump relay and its ground.




There is a yellow/blue stripe wire that runs along the with the SMJ but outside of the SMJ. This wire goes to a connector and continues on to the ECU common wires. I didn’t cut anything when pulling apart the WRX harness so I was able to just pin it into an empty spot in the RS bulk harness. No soldering, I can unplug stuff if I need to. Just a cleaner look. And conveniently there is a plug that has the same size of pins as the one needed and one empty spot. This picture shows the empty spot in the plug.




Again same picture just a bit farther away.







*************

General picture
