Old 08-08-2012, 05:33 PM   #1
DeatschWerks
NASIOC Manufacturer

Member#: 87358
Join Date: May 2005
Chapter/Region: TXIC
Location: Oklahoma City
Default BRZ Fuel System Component Walkthrough

BRZ OE PORT Fuel System Review…

PART 1: PORT FUEL INJECTORS


Subaru PN: 16611AA860
Manufacturer: Denso
OE PN: 2040

Testing Data:



Flow Data Summary:
Static Flow: 205cc/min at 43.5psi (3bar)
Spray Pattern: dual beam – split V (~10*)
Dynamic Flow: see reports for detailed flow data

Injector Description:

The Denso injector used in the BRZ is different from a lot of other injectors. The injector utilizes a 11mm upper o-ring, sumitomo electrical connector, and a high impedance 12.3ohm coil, which is all fairly common. However, the injector body is very short (40mm functional length) and the nozzle is extended 20mm. This yields an overall overall length of 68mm.

Pictures:

BRZ injector (side view)



BRZ injector nozzle (bottom view)



BRZ injector connector (top view)

DeatschWerks is offline   Reply With Quote
Old 08-08-2012, 05:33 PM   #2
DeatschWerks
NASIOC Manufacturer

Member#: 87358
Join Date: May 2005
Chapter/Region: TXIC
Location: Oklahoma City
Default

PART 2: FUEL PUMP MODULE

Subaru PN: 42021CA000
Manufacturer: Denso
OE PN: 291100-0090

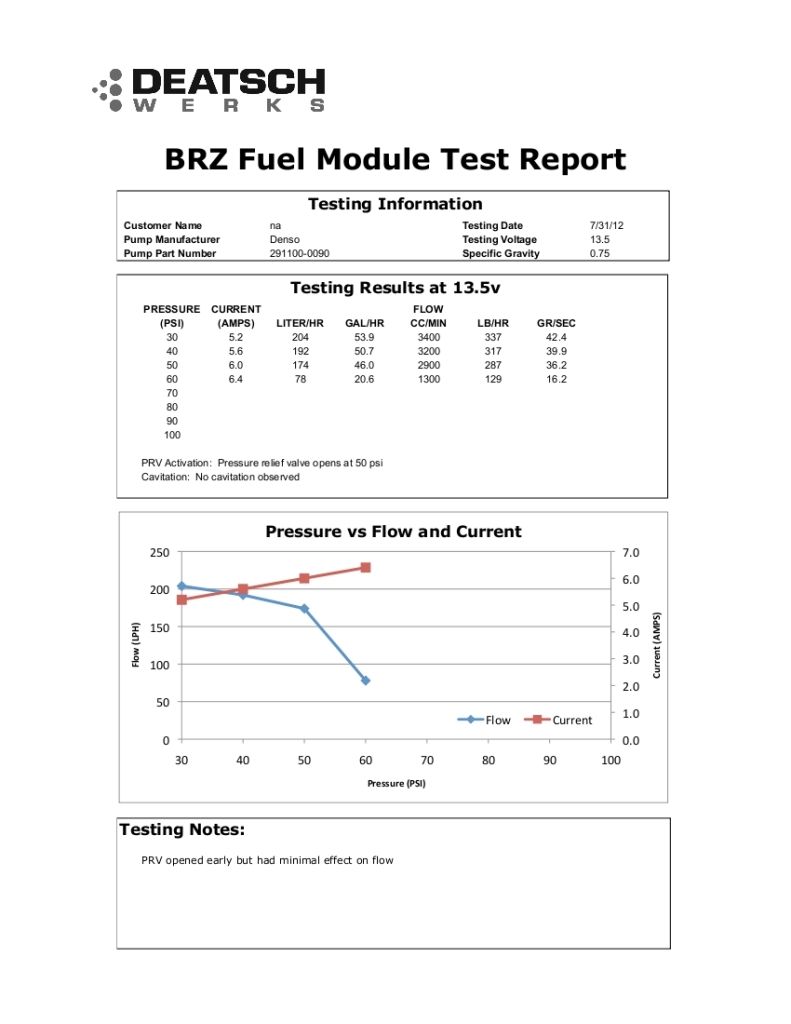

Testing Data:



Module Description:

The module (aka bucket, aka assembly) is fairly standard in size, shape, and design. The BRZ fuel system appears to be returnless because there is only one outlet on the module (see pics). There is an internal regulator that keeps the system pressure a constant 4 bar (58psi), which also indicates a returnless system. I am not aware of another manifold referenced regulator anywhere else in the system. There is also a post fuel pump filter integrated into the module. Both the pump and internal regulator are held into place with a special pre-filter (aka sock) that has integrated clips. Fuel pump modules often have an effect on flow rates. Therefore the OE pump was flow tested both installed into the module and outside of the module. See the report for detailed flow results.

Pictures:

BRZ module – assembled (side view)



BRZ module – assembled (top view)



BRZ module - opened

DeatschWerks is offline   Reply With Quote
Old 08-08-2012, 05:34 PM   #3
DeatschWerks
NASIOC Manufacturer

Member#: 87358
Join Date: May 2005
Chapter/Region: TXIC
Location: Oklahoma City
Default

PART 3: FUEL PUMP

Subaru PN: NA – only sold with module
Manufacturer: Denso
OE PN: 291100-1050

Testing Data:



Pump Description:

The first obvious thing to note is that the fuel pump is very small. The overall length is 96mm and the diameter is 38mm. Other than the size, the pump is pretty normal. It features a single stage, single row turbine impeller, internal check valve to hold system pressure and a spring and disc style PRV (pressure release valve). The connector is not a standard style. When tested, the pump operated very quietly and smoothly drawing very little current, but also flowing quite modestly. The PRV begins to opens at 50psi which is interesting given that the internal regulator is set for 58psi. The PRV does not bleed off a lot of fuel so effects on flow are pretty minimal.

Pictures:

BRZ pump (side view)



BRZ pump inlet



BRZ pump outlet

DeatschWerks is offline   Reply With Quote
Old 08-08-2012, 10:41 PM   #4
bhhamblin
n00b Moderator
Moderator

Member#: 99397
Join Date: Oct 2005
Chapter/Region: RMIC
Location: Clinton, UT
Vehicle:
13 STI, 83 DR30
93 R32 GTS-T, 93 R32 GTR

Default

Good read, thank you!
bhhamblin is offline   Reply With Quote
Old 08-08-2012, 11:01 PM   #5
RallySport Direct
NASIOC Storefront Vendor

Member#: 33174
Join Date: Feb 2003
Chapter/Region: RMIC
Location: Salt Lake City Utah
Vehicle:
We are Open Late!
888-457-2559 Every day!

Default

Wow great info, thanks so much!

Rick
RallySport Direct is online now   Reply With Quote
Old 08-09-2012, 12:48 PM   #6
DeatschWerks
NASIOC Manufacturer

Member#: 87358
Join Date: May 2005
Chapter/Region: TXIC
Location: Oklahoma City
Default

Got this heads up from an IWSTi Member >

Quote:
Originally Posted by suby2low
I would like to throw a couple of words of caution out there about the high pressure side of this fuel system. (Have been to some initial training on the FRS). The high pressure side of the fuel system has a built in pressure sensor that we can look at with scan tool data. We have seen pressures just north of 3000 Psi. The cautionary tail is that the high side pressure DOES NOT bleed down when the car is shut off. Even over an extended period of time. A couple of American engineers found this out the hard way. There is a high pressure bleed down procedure using the factory scan tools. Please be careful if you attempt to work on the fuel system.
DeatschWerks is offline   Reply With Quote
Old 08-12-2012, 04:33 PM   #7
HiProfile
Scooby Newbie

Member#: 199264
Join Date: Jan 2009
Location: SoWis
Default

Any pictures of the intake manifold where the port injectors install? I'm curious if injectors with a taller body or shorter outlets would work.

In any case, the stockers look like they can be modified for more flow. Maybe not by a factor as high as the baby-blue WRX's, but at least from 205cc to 350-400cc. If they were normal Denso's we'd see 475-525cc.
HiProfile is offline   Reply With Quote
Old 08-13-2012, 04:10 AM   #8
Tradewind
Scooby Newbie

Member#: 159312
Join Date: Sep 2007
Chapter/Region: International
Location: Australia
Vehicle:
2005 Subaru Impreza
Aqua Blue

Cool Very interesting

BRZ86 pump info etc very information

Thanks deatschworks - the makers of the best fuel equipment for Subaru!
Tradewind is offline   Reply With Quote
Old 08-14-2012, 03:49 PM   #9
DeatschWerks
NASIOC Manufacturer

Member#: 87358
Join Date: May 2005
Chapter/Region: TXIC
Location: Oklahoma City
Default

I don't have any pics of the manifold at this time, HiProfile.

Appreciate that Tradewind. Thanks for the support!
DeatschWerks is offline   Reply With Quote
Old 08-14-2012, 06:39 PM   #10
illmatic
Scooby Specialist

Member#: 3536
Join Date: Jan 2001
Chapter/Region: SCIC
Location: SD, OC
Vehicle:
2013 SWP BRZ Limited
2002/2003 AW/PSM WRX

Default

Really great breakdown on the port and direct injection system in the Technician Reference Booklet:
https://www.facebook.com/download/45...7-3-12STIS.pdf

If it is not working, I can rehost it.
https://docs.google.com/open?id=0B3E...TVxZHRnVlVWcjQ

Last edited by illmatic; 08-28-2012 at 07:54 PM.
illmatic is online now   Reply With Quote
Old 08-28-2012, 04:17 PM   #11
DeatschWerks
NASIOC Manufacturer

Member#: 87358
Join Date: May 2005
Chapter/Region: TXIC
Location: Oklahoma City
Default

That's a nice piece for reference, illmatic. I'm sure that will come in handy to us and many others. Thanks!
DeatschWerks is offline   Reply With Quote
Old 09-14-2012, 07:58 PM   #12
SilverSurfer04STi
Scooby Specialist

Member#: 71542
Join Date: Sep 2004
Chapter/Region: MWSOC
Location: Midwest
Vehicle:
2013 WRB BRZ

Default

Great and informative thread. Thanks all for posting this info.
