Default Enginuity-tuned by me 2006 WRX - stage 1

Ok, I had a little time to kill before I fly out to Boston tomorrow so I figured I'd finish up the stage 1 tune I've been working on (and off, lol) for my car and then take a little trip out to DB Performance to put it on the sled for a few pulls. FYI, I own a 2006 WRX wagon; stock engine with the exception of a Prodrive muffler.

So here's what I did -- 3 pulls with my stage 1 tune and then flash back the stock map and take 2 more pulls.

The final results aren't that impressive when you just simply look at the max numbers. HOWEVER.....when looking at the torque/hp overlays between the two there is a huge difference.

So here's what I put down:

wotvs stage 1 super awesome jdm euro tune
227 wtq
201 whp

stock (boooo! )
197 wtq
180 whp

Now back to the part on the plots....

On average there is a difference of +30 to +50 gains in wheel torque from around 3k rpms out to 5k rpms. The nice little torque spike that Subaru puts into their tune is there for advertisement (and to make my max torque numbers not look as good. ). Overall there is a pretty large gap between stock and my map which puts a big grin on my face, hehehe.

Regarding HP to the wheels, there's a +20 to +30 gain over the stock calibration pretty much from 3k rpm to redline. Overall both wtq and whp are significantly higher and that's what I'm happy about. yay.
The other thing that is kind of wacky about the stock tune is the horrendous delay in switching over to open loop fueling. As a result, I was running at ~13.6:1 @ 4k rpms before it finally dropped down to ~10.2:1. Yikes!

A final thing to note is that pull #4 was right after flashing back to the stock map. As a result, the IAM/DAM wasn't at it's full value until about halfway through the pull. Pull #5 had an IAM/DAM of 1 and as a result added in the entire knock correction map. I guess I should've done a Vishnu reset before doing pull #4, hehehe. But as you can see, a few extra degrees of timing will go a long way.

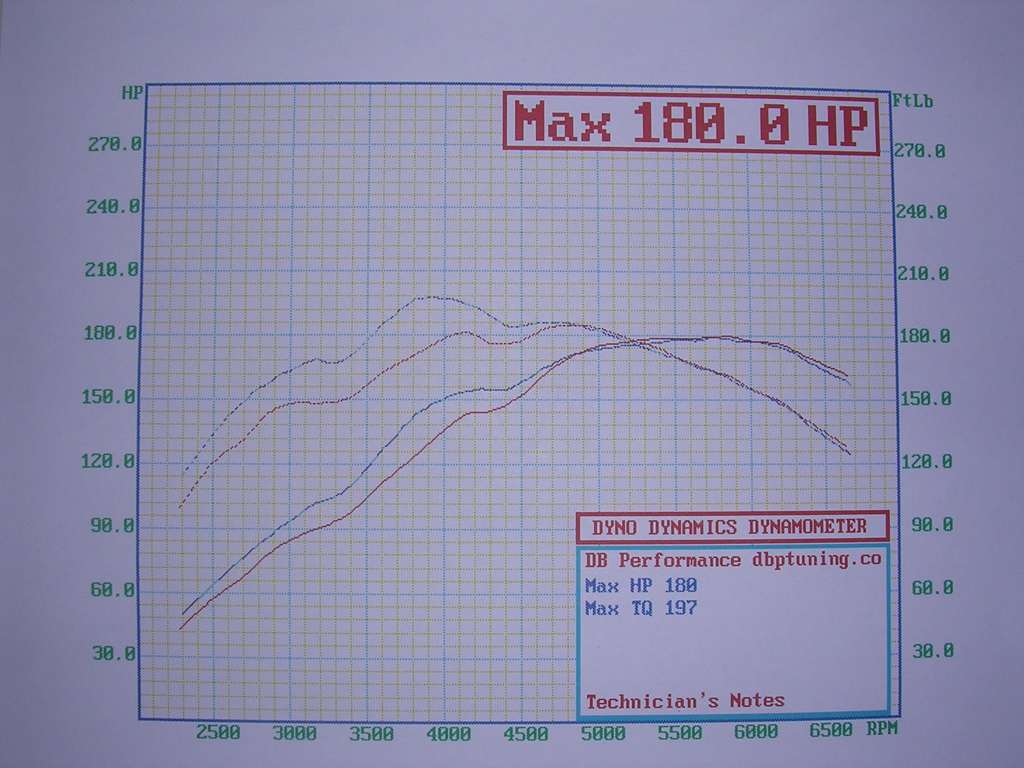

Ok, first up is the stock plot.

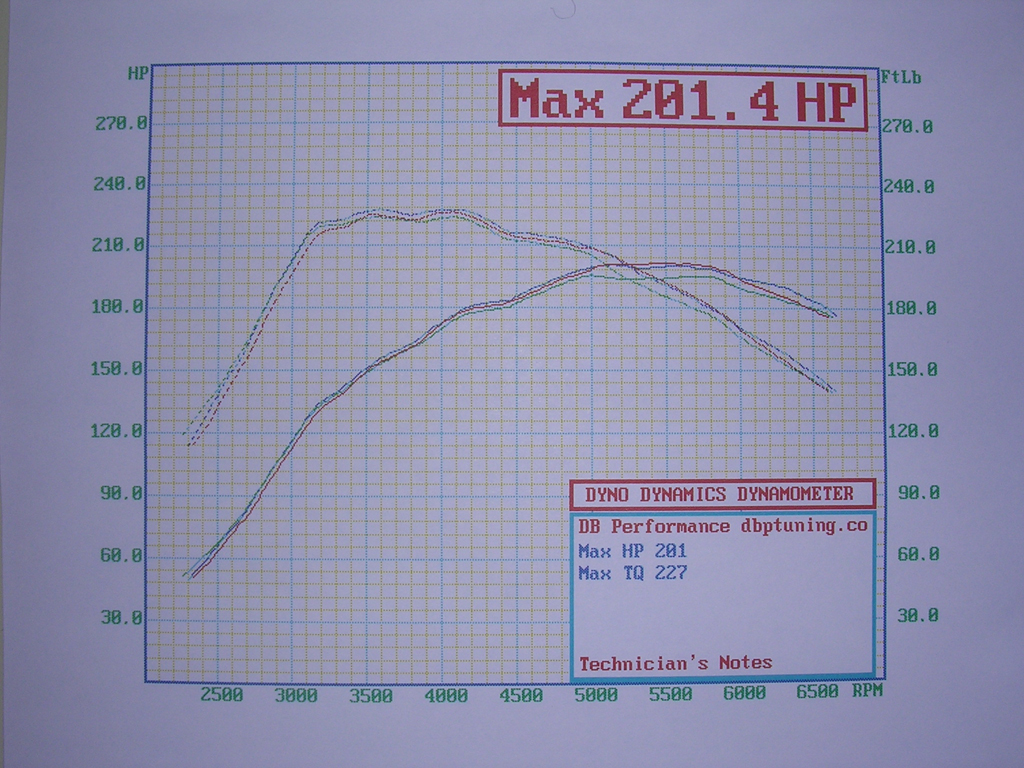

....and here's my tune.

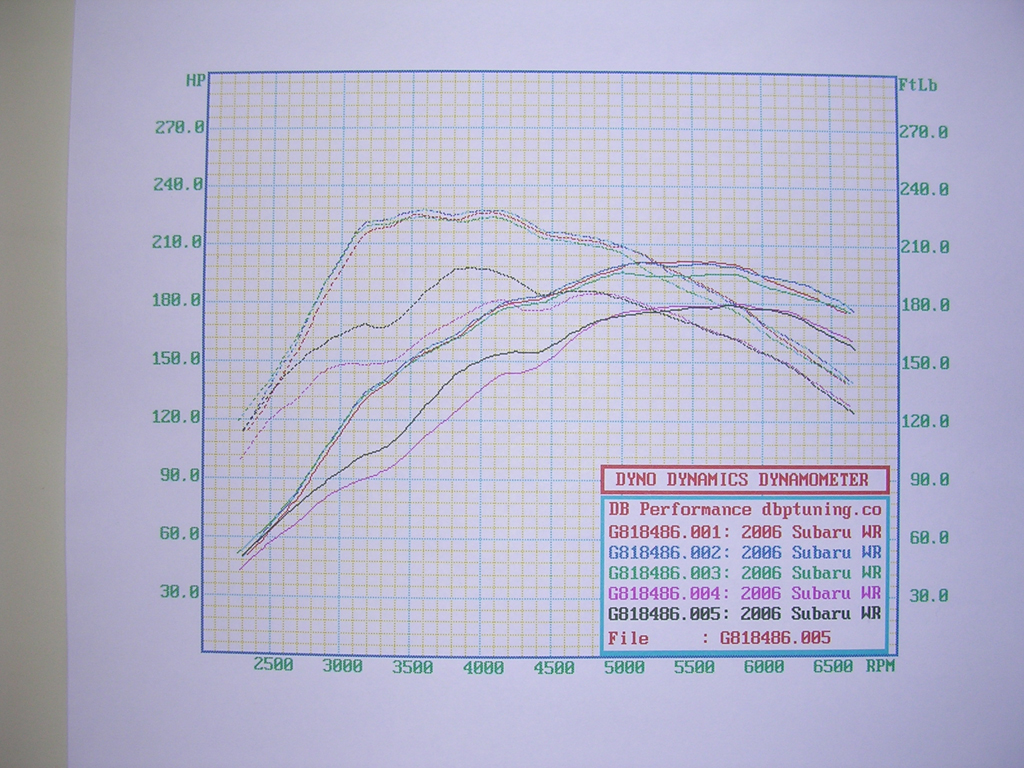

...and here's a comparision between stockZors & t00nzors from hell

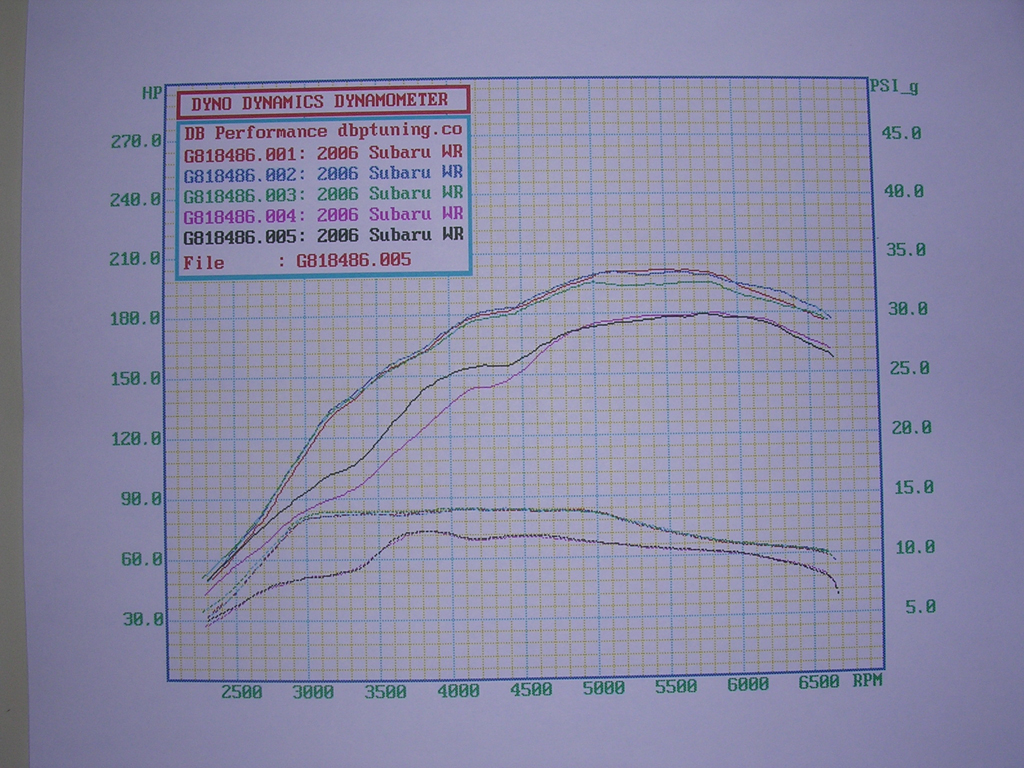

Here's a comparision of hp and boost. The stock boost curve is t3h suX0r.

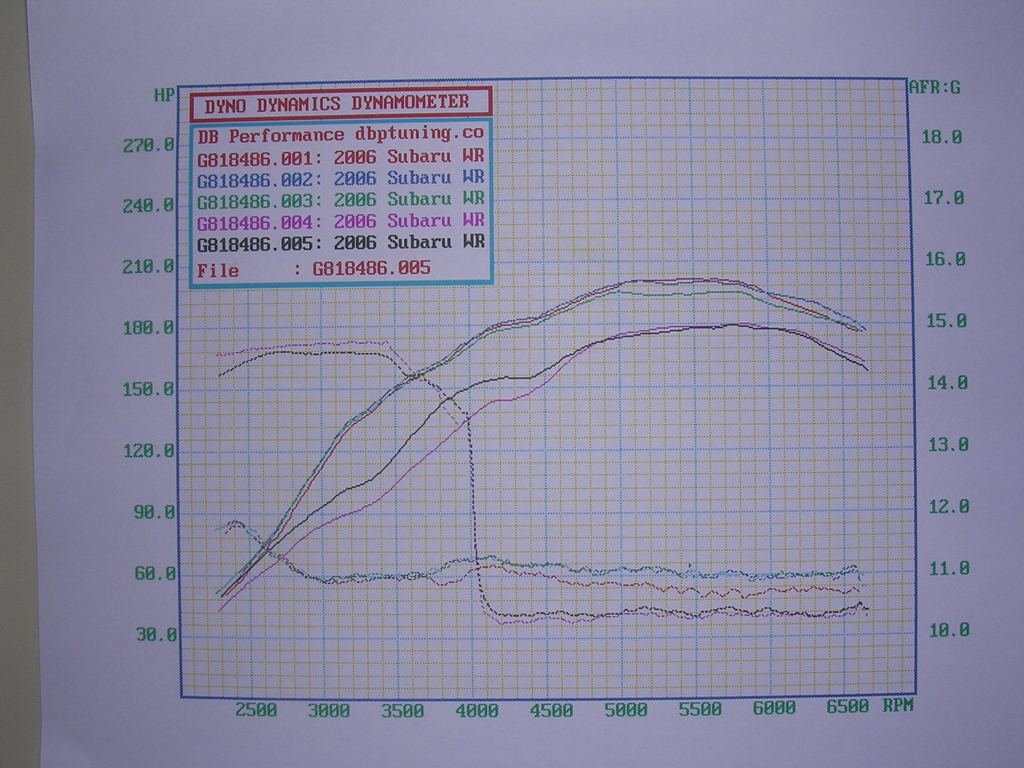

And here's hp vs afr for both tunes. Note the insane lean condition of the stock curve caused by the OL/CL delay. eek!
