Old 12-01-2007, 09:40 PM   #1
wkderf
Scooby Specialist

Member#: 47027
Join Date: Nov 2003
Chapter/Region: Tri-State
Location: Philadelphia
Vehicle:
2004 Impreza STi
I Heart Prodrive

Default The 1st comprehensive 2008 impreza dash & radio removal guide

just a heads up. at this very moment my friends & I are working on installing a few goodies into our friends brand new 2008 WRX wagon. after a solid hour of sheer frustration, we are over the hedge in figuring out how to remove the dash & radio to install aftermarket equipment. we are taking pictures & making notes as we go. We will post up pics, wire color codes, and tips when we finish the install this evening.

just a quick note though - the GE chassis is NOT as easy to work on interior wise as the chassis before it.


Fred



Edit: the work is finished but we realized we didnt take pictures of a few key things so we are getting them now & will have all the info up soon. but for now - here are the wire codes for the radio harness.

Radio 12V: blue/red

Ground: black/blue

Accessory: yellow/red

Illumination: purple

Power antenna turn on: yellow/black

LF + / - white/black - blue/orange

RF + / - green - brown/yellow

LR + / - red/black - white/red

RR + / - red/white - gray/green
* Registered users of the site do not see these ads.

Last edited by wkderf; 12-03-2007 at 05:49 PM.
wkderf is offline   Reply With Quote
Sponsored Links
* Registered users of the site do not see these ads.
Old 12-24-2007, 11:57 AM   #2
bigdsti
Scooby Newbie

Member#: 72830
Join Date: Oct 2004
Location: Denver
Vehicle:
2013 BRZ Premium
DGM

Default

teh subscriborZ.

I'll be doing this next month in an 08 STi so any pics, tips, and tricks you guys have will be very helpful!

I'll be installing a single DIN head unit and a pocket right above it, and later this year replacing the pocket with a single DIN 42 Draft Designs triple gauge pod above the head unit for a nice "factory" look. I'll probably have to custom fit the gaige pod, but that won't be too difficult.
bigdsti is offline   Reply With Quote
Old 12-24-2007, 02:21 PM   #3
Mooneyes13
Scooby Specialist

Member#: 113666
Join Date: Apr 2006
Chapter/Region: MWSOC
Location: illannoy
Vehicle:
60' all over you

Default

IN for this info
Mooneyes13 is offline   Reply With Quote
Old 12-27-2007, 01:46 PM   #4
terwilliger
Scooby Newbie

Member#: 167610
Join Date: Dec 2007
Default installing a radio into a 2008 impreza

OK, the wire guide looks good to go, I'm assuming you are not using a specific built wiring harness adapter. What about a bracket for fitting it in the dash? are you using last years version? the factory radio (I have a base model) looks wider than a din size. I made a profile just to pay attention to this post, so thanks for the help!
~Ben
terwilliger is offline   Reply With Quote
Old 01-03-2008, 12:24 AM   #5
bigdsti
Scooby Newbie

Member#: 72830
Join Date: Oct 2004
Location: Denver
Vehicle:
2013 BRZ Premium
DGM

Default

bump. pics yet?
bigdsti is offline   Reply With Quote
Old 01-06-2008, 10:34 AM   #6
Aaron'z 2.5RS
Scooby Guru

Member#: 1026
Join Date: Mar 2000
Chapter/Region: MWSOC
Location: Hickigan
Vehicle:
'00 RS/WRX Stg5
'98 RS Stock

Default

PICS?????????????????? or fail
Aaron'z 2.5RS is offline   Reply With Quote
Old 02-16-2008, 02:59 PM   #7
wkderf
Scooby Specialist

Member#: 47027
Join Date: Nov 2003
Chapter/Region: Tri-State
Location: Philadelphia
Vehicle:
2004 Impreza STi
I Heart Prodrive

Default

ist thing to to is remove the side panel to access the corner of the dash trim:


once that is removed, you can grab the edge of the dash trim piece:


from here, you can pull on the edge of the trim piece & air vent & the clips will start to pop off:


here is where is gets tricky: the way the trim piece clips in, you have to pull very carefully to get it off the car. i found pulling up then down got the upper & lower clips off. this was one of the toughest parts.


in this pic, you can see the slots that the tabs from the trim piece fits into:


what sucks is that the bezel that surrounds the radio can be removed without getting this mazzive trim piece off, but the clips are soooo tight, and there is no place to get a grip on the bexel piece to remove it by itself.


Last edited by wkderf; 03-05-2009 at 12:25 PM.
wkderf is offline   Reply With Quote
Old 02-16-2008, 02:59 PM   #8
wkderf
Scooby Specialist

Member#: 47027
Join Date: Nov 2003
Chapter/Region: Tri-State
Location: Philadelphia
Vehicle:
2004 Impreza STi
I Heart Prodrive

Default

a few close ups of the clips that hold the dash pieces in:







now that the bezel & trim are out - we can easily remove the radio:


a shot of the back of the OEM radio for reference:


the radio removed:


a total side note: the blue mood light that lights up the pocket in the dash:



Last edited by wkderf; 03-05-2009 at 12:21 PM.
wkderf is offline   Reply With Quote
Old 02-16-2008, 03:00 PM   #9
wkderf
Scooby Specialist

Member#: 47027
Join Date: Nov 2003
Chapter/Region: Tri-State
Location: Philadelphia
Vehicle:
2004 Impreza STi
I Heart Prodrive

Default

the little condom acts to diffuse the light & make it more even:

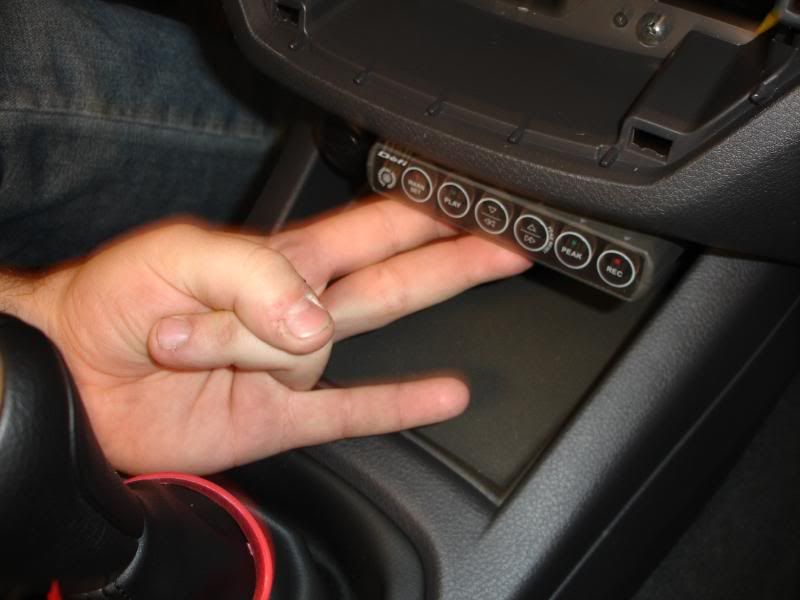

A defi control unit just happens to fit perfectly in this lower portion of the dash. subaru is gettin better!


and for those curious about the A pillar airbag, the bag itself is only on the very top portion. see below:



Last edited by wkderf; 03-05-2009 at 12:21 PM.
wkderf is offline   Reply With Quote
Old 02-16-2008, 03:10 PM   #10
wkderf
Scooby Specialist

Member#: 47027
Join Date: Nov 2003
Chapter/Region: Tri-State
Location: Philadelphia
Vehicle:
2004 Impreza STi
I Heart Prodrive

Default

the lower dash, similar to other model years, comes off with a few clips:


the gauge surround also pops off with a little tugging force:



The dash is like LEGOs, everything has an order to it, so the best thing to do is to start with the side & lower dash panels, & work your way from there.

Last edited by wkderf; 03-05-2009 at 12:22 PM.
wkderf is offline   Reply With Quote
Old 02-16-2008, 11:10 PM   #11
iridebmx
Scooby Newbie

Member#: 153116
Join Date: Jul 2007
Chapter/Region: South East
Location: Sarasota, Fl
Vehicle:
2008 WRX 5-Door
SWP Necklace

Default

Great pics, thanks. The fact that the Defi fits is a "shocker"

Last edited by iridebmx; 02-16-2008 at 11:48 PM.
iridebmx is offline   Reply With Quote
Old 03-01-2008, 01:58 PM   #12
SVXdc
Scooby Specialist

Member#: 25837
Join Date: Oct 2002
Chapter/Region: South East
Location: Atlanta, GA
Vehicle:
1996 SVX L AWD
Laguna Blue Pearl

Post

Here are a few closer pics of the non-Navi 2008 factory radio (courtesy of Gary, who bought one on eBay).

It's made by Clarion. Model number (on front) is CZ641U6. Model number on the label is PF-2950A-A. Part number 86201FG640.

(click on these thumbnails to see full-sized images)

Front:
.
Rear:
.
Label on top:
.
Close-up of new-style 20-pin power/speaker connector:
.
The connector has two rows of 9 smaller pins, plus two larger pins on the far left and right sides.

It's physically the same as the one on the 2007 Nisson Maxima and Versa, although the pin assignments may be different. [UPDATED:] Most of the pin assignments are the same. I already know that Metra's aftermarket harnesses for the Nissan (into car: 70-7552, and into radio or reverse: 71-7552) do not include wires for ground or illumination.

As wkderf wrote in post #1, the Subaru car's harness has 13 wires populated — 4 speakers, ground, +12V battery (constant), +12V accessory (switched), antenna remote control, and illumination.

UPDATED: According to Subaru's wiring diagram, the car's harness has two pins for illumination and dimmer, just like on the 14-pin harness in older/other years/models. The new harness also has the two wires for "satellite switches" (remote control buttons on the steering wheel), and adds two wires for CAN bus. 18 wires total.

UPDATED: I've posted the complete pin-out here. More information is in my "Stock HU Info" thread here.

Last edited by SVXdc; 12-04-2010 at 02:10 PM.
SVXdc is offline   Reply With Quote
Old 03-02-2008, 12:06 AM   #13
bwanaaa
Scooby Newbie

Member#: 172602
Join Date: Feb 2008
Location: Massachusetts
Vehicle:
2008 STi
gray

Default

i assume the same harness plugs into the oem nav/radio. Is there a gray wire than needs to be grounded so the nav will be operable while the vehicle is in motion.?
bwanaaa is offline   Reply With Quote
Old 03-02-2008, 04:30 PM   #14
bobaru
Scooby Newbie

Member#: 173217
Join Date: Feb 2008
Chapter/Region: MWSOC
Location: Palatine, IL
Vehicle:
2008 WRX
Obsidian Black Pearl

Default Nav Wires

Actually, the navigation unit uses the older style audio/power connector for the sound/power but adds a connector that gets more info from the car, including, yes, the emergency/parking brake grounding signal. I have done a write-up on my experience defeating the while moving DVD / Navigation lock-out and you can find it here:
http://www.webjogger.com/WRX/2008WRX/08wrxnav.htm

So the nav uses this connector for sound:
http://www.geocities.com/svxdc/WRX-pinout.htm

And the one pictured below for other vehicle info.

Also, here is a pic of the Navigation connector:

bobaru is offline   Reply With Quote
Old 06-24-2008, 01:44 AM   #15
inquestec2002
Scooby Newbie

Member#: 115431
Join Date: May 2006
Chapter/Region: NESIC
Location: connecticut
Vehicle:
2005 Forester XT
gray

Default

is there a harness or way to hook up an 2005 oem radio to the new wrx??
inquestec2002 is offline   Reply With Quote
Old 06-24-2008, 10:22 AM   #16
littlewhitewagon
Scooby Guru

Member#: 103068
Join Date: Dec 2005
Chapter/Region: SCIC
Location: PM me if I don't answer posts
Vehicle:
11 STI sedan
SWP

Default

^^ Use the old subaru reverse harness and new subaru adapter harness... but the width of the radio is different.
littlewhitewagon is offline   Reply With Quote
Old 06-25-2008, 05:55 PM   #17
inquestec2002
Scooby Newbie

Member#: 115431
Join Date: May 2006
Chapter/Region: NESIC
Location: connecticut
Vehicle:
2005 Forester XT
gray

Default

where,are,these,harness??something,i,have,to,order ??
inquestec2002 is offline   Reply With Quote
Old 06-25-2008, 11:23 PM   #18
gen_pete
Scooby Newbie

Member#: 180948
Join Date: May 2008
Location: Denver
Vehicle:
2008 Impreza 2.5i
Obsidian Black Pearl

Thumbs up

thanks for the pics, glad to see someone did this before I tore into my dash
gen_pete is offline   Reply With Quote
Old 07-02-2008, 03:16 PM   #19
scro
Scooby Newbie

Member#: 180949
Join Date: May 2008
Chapter/Region: MAIC
Vehicle:
2008 STI
Silver

Default

Quote:
Originally Posted by SVXdc View Post
[UPDATED:] Most of the pin assignments are the same. I already know that Metra's aftermarket harnesses for the Nissan (into car: 70-7552, and into radio or reverse: 71-7552) do not include wires for ground or illumination.

As wkderf wrote in post #1, the Subaru car's harness has 13 wires populated - 4 speakers, ground, +12V battery (constant), +12V accessory (switched), antenna remote control, and illumination.

[UPDATED:] According to Subaru's wiring diagram, the car's harness has two pins for illumination and dimmer, just like on the 14-pin harness in older/other years/models. The new harness also has the two wires for "satellite switches" (remote control buttons on the steering wheel), and adds two wires for CAN bus.
Great info!
Which pin did you use for illumination? A1 or A2? Thanks

EDIT: No worries, I just used A1 and it works.

Last edited by scro; 07-02-2008 at 07:24 PM.
scro is offline   Reply With Quote
Old 07-02-2008, 06:38 PM   #20
falconeight
Scooby Newbie

Member#: 77632
Join Date: Dec 2004
Default

Quick Question, If I would want to add a OEM nav to a STI that came with the stock OEM stereo is it a plug and play or are the connections missing.
falconeight is offline   Reply With Quote
Old 08-27-2008, 04:08 PM   #21
xthompsx
Scooby Newbie

Member#: 187953
Join Date: Aug 2008
Chapter/Region: MWSOC
Vehicle:
2008 Impreza WRX
Black

Default 2008 Impreza WRX Pioneer AVIC-F900BT Install

Just wanted to share some info on installing a Pioneer AVIC-F900BT GPS/DVD in my 2008 Impreza WRX (non-nav). It took a fair amount of searching for these detail so I hope it save some trouble for others:


Connections:

Antenna - just plug in the factory plug into the back of the deck, no adaptor needed.

Subaru 20 pin connector pin out:

_____2___3___4___5___6___7___8___9___10
1_______________________________________20
_____11__12__13__14__15__16__17__18__19


1 = GRND

2 = violet (+12 with lights on)
3 = Black/White (Dimmer)
4 = yellow/red (+12 accessory)
5 = Brown (steering wheel controls)
6 = red/black (speaker LR)
7 = white/red (speaker LR)
8 = white/black (speaker LF)
9 = blue/orange (speaker LF)
10 = yellow/black (power antenna)

11 = green/red (????)
12 = pink (????)
13 = none
14 = yellow (steering wheel controls)
15 = red/white (speaker RR)
16 = gray/green (speaker RR)
17 = green (speaker RF)
18 = brown/yellow (speaker RF)
19 = none

20 = +12 constant (i.e battery)

Pioneer Color Code

white = LF Speaker +
white/black = LF Speaker -
green = LR Speaker +
green/black = LR Speaker -
gray = RF Speaker +
gray/black = RF Speaker -
violet = RR Speaker +
violet/black = RR Speaker -

black = GRND
yellow = +12 const (battery)
red = +12 accessory on
orange/white = +12 with lights on
light green = parking brake (to GRND if you wish to defeat restriction on watching video while in motion).
pink = speed signal input (I didn't connect this and everything seems fine)
violet/white = reverse gear signal (I didn't use this one - as I don't drive backward and try to use the gps at the same time).

yellow/black (upper row left on the second harness - the one with all the RCA plugs) = Audio Mute (if you move the pin in this connector to the empty space on the lower row 4th space from left and then ground this wire (and the light green parking break wire) you will have the ability to use all functions while in motion. Of course none of you would do this in an Impreza but you could.

Steering Wheel Controls:
Use a PESWIPS Interface (got mine at Fry's)
www.peripheralelectronics.com
Follow the Nissan 2008 Pathfinder Instructions

Connect:
Black to GRND
Red to +12 accessory
White to pin 14 yellow on subaru radio harness
then ground pin 5 brown on the subaru harness
You don't use any of the other wires.

Connect output of PESWIPS to the jack on the back of the deck.
Program the buttons as per the instructions.

Hope this helps someone.
xthompsx is offline   Reply With Quote
Old 08-28-2008, 03:16 PM   #22
Go Loud
Scooby Newbie

Member#: 187579
Join Date: Aug 2008
Default

I am getting an 09 WRX with the standard 4 speaker stereo.
Can anybody tell me if the vehicle is pre-wired for all of the 10 speaker locations even though only 4 speakers are utilized in the base system.

It would save me a lot of work running wires if this is the case.
Go Loud is offline   Reply With Quote
Old 08-28-2008, 05:07 PM   #23
Magic Marker
Scooby Specialist

Member#: 181568
Join Date: Jun 2008
Chapter/Region: Tri-State
Location: Northern New Jersey
Vehicle:
2011 3.6R Legacy LTD
Steel Silver Metallic

Default

Quote:
Originally Posted by falconeight View Post
Quick Question, If I would want to add a OEM nav to a STI that came with the stock OEM stereo is it a plug and play or are the connections missing.
I'd love to know that answer.
Magic Marker is offline   Reply With Quote
Old 08-28-2008, 05:29 PM   #24
Impreza_R34
Scooby Newbie

Member#: 186935
Join Date: Aug 2008
Chapter/Region: MAIC
Location: Uniontown, PA
Vehicle:
2004 Impreza OBS
Green/Gold

Default

I too would love to know that answer. I'm thinking about having it put in anyway. But If this works I can save a hell a lot of money.
Impreza_R34 is offline   Reply With Quote
Old 08-28-2008, 05:36 PM   #25
Courteau
Scooby Newbie

Member#: 163722
Join Date: Nov 2007
Chapter/Region: E. Canada
Location: Trois-Rivieres, Quebec, Canada
Vehicle:
2008 Impreza WRX 5Dr
WR Blue Mica

Default

Quote:
Originally Posted by Go Loud View Post
I am getting an 09 WRX with the standard 4 speaker stereo.
Can anybody tell me if the vehicle is pre-wired for all of the 10 speaker locations even though only 4 speakers are utilized in the base system.

It would save me a lot of work running wires if this is the case.
there isnt really 10 speaker...

there is 4 speaker, one in each doors, and 6 tweeters:
two next to the pillars and one with each of the 4 speakers, fitted with a bracket in the middle.. looks like a coaxial speakers...
so saying it got 10 speakers is pretty much BS

Last edited by Courteau; 08-28-2008 at 10:20 PM.
Courteau is offline   Reply With Quote
Reply

Thread Tools
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Forum Jump

Similar Threads
Thread Thread Starter Forum Replies Last Post
Remove the 2008 Impreza Front Bumer Boots Interior & Exterior Modification 6 08-16-2012 04:14 PM
SOA 2008 Impreza Accessories P/N & Installation Guides (includes iPod Interface Kit) Jon [in CT] News & Rumors 50 06-09-2011 10:39 PM
Anyone else notice the angle of the 2008 Impreza dash? GodWhomIsMike General Community 36 09-14-2007 01:43 AM
2006 Impreza 2.5i Radio Removal code_hat Normally Aspirated Powertrain 3 10-05-2006 09:57 AM
2000 Impreza-need trim removal guide. Any links? Chewyguru Off-Topic 12 05-03-2004 03:15 PM

All times are GMT -4. The time now is 05:32 AM.


Powered by vBulletin® Version 3.7.0
Copyright ©2000 - 2024, Jelsoft Enterprises Ltd.
Powered by Searchlight © 2024 Axivo Inc.
Copyright ©1999 - 2019, North American Subaru Impreza Owners Club, Inc.

As an Amazon Associate I earn from qualifying purchases.

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission
Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
