Default Hood Scoop Fitment Thread

I see a new thread almost daily from someone asking how to get an 04/05 scoop on an 02/03 hood, or a 04/05 scoop on an 06/07 hood. People also want the JDM STI scoops for the 02/03 but don't know where to get them. Hopefully this thread will solve all this.

The absolute fact is that the OEM hood scoops are not interchangeable between model years.

For reference I've listed below, the nicknames of model years in case you don't already know them:

BUGEYE = 02/03 Model Years
BLOBEYE = 04/05 Model Years
HAWKEYE = 06/07 Model Years



For the BUGEYE JDM STI scoop that fits the BUGEYE hood look here:

http://www.j-spectuning.com/product_...roducts_id/118
and
http://forums.nasioc.com/forums/show....php?t=1115609
and
http://www.flatironstuning.com/p-103...od-scoops.aspx
and
http://www.rallysportdirect.com/STI-...-JDM-Hoodscoop




For the BLOBEYE STI scoop that fits the BUGEYE hood look here:

(Links outdated. If you find a new one please PM me.)




For the HAWKEYE scoop that fits the BLOBEYE hood look here:

http://www.japanparts.com/db/parts_d...&SEARCH_page=9




For the BLOBEYE STI scoop that fits the HAWKEYE hood look here:

http://www.mrtperformance.com.au/pro...DBonnet+Scoops




SPLITTERS

The splitter funnels air directly into the intercooler. In the stock splitter, air is moved through a single channel, directly into the IC with a shrowd surrounding the bottom of the splitter. Without the splitter, the hood scoop does not fit snuggly with the IC, allowing air to go around -- instead of through -- the TMIC.
Ex:


The rubber shroud that fits on the OEM splitter is part number 90817FE210 and is around $40. This can be used to make an ill fitting splitter a perfect fitting splitter. Other materials have been used such as rubber weather seal material from Home Depot.

The little plastic clips that hold the rubber shround to the OEM/STI splitter are part number 90826FA000 and are 80 cents each.

You will also see some splitters on eBay which are sheet metal splitters. They work with your factory unit and don't do much other than direct more airflow over the OEM intercooler and should NOT be thought of as a real splitter for a bigger intercooler.


BUGEYE 02/03: For the Bugeye there are 4 types of splitters.

Stock Splitter **fits under the OEM WRX scoop** -- 16" x 5 1/2" opening, single air channel, no pre-drilled IC spray nozzle hole. Heavier than the V.7, about the same weight as the APS splitter.
The stock splitter can be found in the OEM catalog here:
www.subarugenuineparts.com

JDM V.7 Splitter **fits under the JDM STI scoop** -- 17 7/8" x 5 3/4" opening, double air channel, one pre-drilled IC spray nozzle hole. Lightest of the 3 splitters.

APS Splitter **fits under the JDM STI scoop** -- 19" x 5 3/4" opening, double air channel, three pre-drilled IC spray nozzle holes. Heavier than the V.7, about the same weight as the stock splitter. Note: the APS splitter has a metal strip on each of 4 sides of the splitter opening (what holds the shrowd). The SpeedFactor TMIC was so big that the rear metal strip, or lip, just barely interfered with the intercooler. So, this morning I stopped by my local Meineke, and for $20 they ground down the interfering metal.

GTSpec Splitter **fits under the JDM STI scoop** -- The GTSpec splitter is designed to fit under the STI sized scoop and is to tall for the OEM WRX scoop.

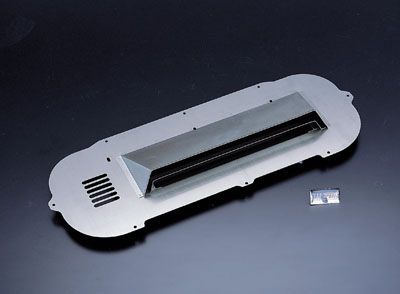

The Zero/Sports splitter acan be found here:

The JDM V.7, GTSpec, and APS splitters are designed for the taller scoop such as the JDM STI scoop and will NOT fit under the BUGEYE WRX scoop because the scoop is not tall enough.

I am still in the process of finding where the APS and v.7 STI splitters can be purchased.



BLOBEYE 04/05: For the Blobeye there are 4 types of splitters.

Stock splitter **Fits under the OEM WRX scoop** -- The stock splitter will fit under both the OEM WRX and STI scoops but is designed for the OEM WRX intercooler.
The stock WRX splitter can be found in the OEM catalog here:
www.subarugenuineparts.com

STI splitter **Fits under the STI scoop** -- The STI splitter is designed to fit under the STI sized scoop and is to tall for the OEM WRX scoop.
The Blobeye STI splitter can be found here:
https://www.subarugenuineparts.com/p...roducts_id=740

Zero/Sports Splitter **Fits under the STI scoop** -- The STI splitter is designed to fit under the STI sized scoop and is to tall for the OEM WRX scoop.
The Zero/Sports splitter can be found here:
http://shop.edoperformance.com/zeros...rx-p-9201.html

APS Splitter **fits under the OEM WRX scoop** -- 19" x 5 3/4" opening, double air channel, three pre-drilled IC spray nozzle holes. Heavier than the V.7, about the same weight as the stock splitter. Note: the APS splitter has a metal strip on each of 4 sides of the splitter opening (what holds the shrowd). The SpeedFactor TMIC was so big that the rear metal strip, or lip, just barely interfered with the intercooler. So, this morning I stopped by my local Meineke, and for $20 they ground down the interfering metal.


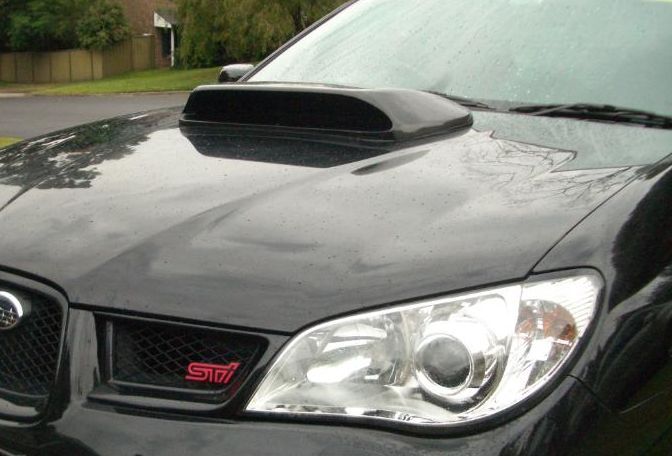

HAWKEYE 06/07 : Both the WRX and STI have the exact same scoop. However, the WRX has a different splitter than the STI because the STI splitter was designed for the STI intercooler and the WRX splitter was designed for the WRX intercooler.

Stock splitter **Designed to fit the shape of the OEM WRX intercooler** -- The stock splitter will fit under both the OEM WRX and STI scoops
The stock WRX splitter can be found in the OEM catalog here:
www.subarugenuineparts.com

STI splitter **Designed to fit the shape of the OEM STI intercooler** -- The STI splitter will fit under both scoops as well.
The Hawkeye STI splitter can be found here:
https://www.subarugenuineparts.com/p...oducts_id=1008

Zero/Sports Splitter **Designed to fit the shape of the OEM STI intercooler** -- The Zero/Sports splitter will fit under both scoops as well.
The Zero/Sports STI splitter can be found here:
http://shop.edoperformance.com/zeros...ti-p-9335.html




NOTE: Thanks to Subie_Gal, Unabomber, ECUWRX28 and scooterforever for providing various information

* Registered users of the site do not see these ads.

Last edited by sc00ter; 07-17-2013 at 02:25 PM. Reason: Information added
sc00ter is offline   Reply With Quote
Old 05-23-2008, 02:19 PM   #2
abgusaf
Scooby Specialist

Member#: 143122
Join Date: Mar 2007
Chapter/Region: International
Location: Across the pond
Vehicle:
07 WRB STi
in the werks

Default

that looks horrible

IMO the 04-05 hood scoop looks good on the 04-05 only
abgusaf is offline   Reply With Quote
Old 05-23-2008, 03:12 PM   #3
Super_HKS
Scooby Guru

Member#: 154434
Join Date: Jul 2007
Chapter/Region: NWIC
Location: Sultan WAAA
Vehicle:
2009 WRX Hatch <@_@>
SWP

Default

Quote:
Originally Posted by abgusaf View Post
that looks horrible

IMO the 04-05 hood scoop looks good on the 04-05 only
Agreed
I love my CF STI scoop on my 05 wrx. Looks great.
Super_HKS is offline   Reply With Quote
Old 05-23-2008, 03:27 PM   #4
sc00ter
Scooby Specialist

Member#: 117767
Join Date: Jun 2006
Chapter/Region: RMIC
Location: Denver, CO
Vehicle:
2011 DGM STI Sedan
Torqued Performance Tuned

Default

Believe me, I completely agree. However, people ask about it every single day. So this is not an opinion thread regarding the topic. It's strictly to be used as a reference so when that daily "04 STI scoop on my bugeye" thread pops up, they can just come here.

Last edited by sc00ter; 05-23-2008 at 03:34 PM.
sc00ter is offline   Reply With Quote
Old 05-23-2008, 07:50 PM   #5
SUBYDOODIE
Scooby Guru

Member#: 71490
Join Date: Sep 2004
Chapter/Region: SCIC
Location: LA/Hollywood
Vehicle:
05 cgm wrx
rubbing axles haha

Default

Quote:
HAWKEYE (06/07): For the Hawkeye there are two types of splitters as well

Stock splitter: The stock splitter will fit under both the OEM WRX and STI scoops
The stock WRX splitter can be found in the OEM catalog here:
www.subarugenuineparts.com

STI splitter: The STI splitter will only fit under the STI scoop becasue the WRX scoop is not tall enough.
The Hawkeye STI splitter can be found here:
this information is incorrect...

hawkeye wrx and sti have the same exact scoop as far as i remember
SUBYDOODIE is offline   Reply With Quote
Old 05-23-2008, 08:30 PM   #6
sc00ter
Scooby Specialist

Member#: 117767
Join Date: Jun 2006
Chapter/Region: RMIC
Location: Denver, CO
Vehicle:
2011 DGM STI Sedan
Torqued Performance Tuned

Default

Quote:
Originally Posted by SUBYDOODIE View Post
this information is incorrect...

hawkeye wrx and sti have the same exact scoop as far as i remember
That's what I thought as well until I read otherwise. I will change it.
sc00ter is offline   Reply With Quote
Old 05-23-2008, 09:19 PM   #7
Subie Gal
GC84Ever
Super Moderator

Member#: 301
Join Date: Sep 1999
Chapter/Region: NWIC
Location: WA
Vehicle:
1970 FF-1 & '70 Van
02 WRX/01 RS

Default

Hawkeye wrx vs sti have the same OEM scoops.. but different air splitters.
Subie Gal is offline   Reply With Quote
Old 05-24-2008, 12:23 AM   #8
Spooky
Scooby Guru

Member#: 58864
Join Date: Apr 2004
Chapter/Region: SCIC
Location: Irvine
Default

^^^^ true
Spooky is offline   Reply With Quote
Old 05-24-2008, 03:36 PM   #9
BIGSKYWRX
Scooby Guru

Member#: 7958
Join Date: Jul 2001
Location: Plains of Eastern Montana
Vehicle:
09 GH B+

Default

when I ran my STi intercooler my wife hated the 04/05 STi scoop, so I purchased a v7 splitter which w/ some minor tweaking fit rather well under the oe 04/05 WRX scoop. The oe 04/05 WRX scoop is dimensionally very close to the v7 STi scoop - in fact the WRX (04/05) scoop is even slightly taller than the previous gen STi scoop
BIGSKYWRX is offline   Reply With Quote
Old 05-25-2008, 02:34 PM   #10
iltisvw
Scooby Newbie

Member#: 176484
Join Date: Apr 2008
Chapter/Region: E. Canada
Location: East Coast Canada
Vehicle:
2006 STI Stage 2

Default

Iím actually looking into the 04-05 scoop on my 06 and I was wondering if anyone running the 06-07 Chargespeed hood scoop SKU CS975HD could share some info? Iíve found some pics of it from the outside, but Iím wondering how it looks on the inside? Especially fitment compared to stock, can you use the stock splitter, spray nozzle, hardware and so on? Also the mesh stuff they show in the scoop can be removed easily? Any hacking necessary?

Thanks!
iltisvw is offline   Reply With Quote
Old 05-25-2008, 08:46 PM   #11
LeeREX06
Scooby Newbie

Member#: 147001
Join Date: Apr 2007
Location: NC
Vehicle:
2006 WRX stg. 2
Black

Default

Quote:
Originally Posted by Subie Gal View Post
Hawkeye wrx vs sti have the same OEM scoops.. but different air splitters.
This is very true
LeeREX06 is offline   Reply With Quote
Old 05-25-2008, 09:51 PM   #12
sjs0433
Scooby Specialist

Member#: 86061
Join Date: Apr 2005
Chapter/Region: MAIC
Default

Am I the only one that wishes they could run a 06/07 style scoop on an 04/05?
sjs0433 is offline   Reply With Quote
Old 05-26-2008, 04:04 AM   #13
down_for_the_scooby
Scooby Specialist

Member#: 78314
Join Date: Dec 2004
Chapter/Region: Tri-State
Location: 3 feet south of E. Bumblef***
Vehicle:
04 PSM WRX
Audi mask the right way

Default

Quick question, is the 04/05 wrx scoop the same scoop on an 04/05 sti or is the sti's bigger?
down_for_the_scooby is offline   Reply With Quote
Old 05-26-2008, 09:39 AM   #14
BIGSKYWRX
Scooby Guru

Member#: 7958
Join Date: Jul 2001
Location: Plains of Eastern Montana
Vehicle:
09 GH B+

Default

STi is significantly taller
BIGSKYWRX is offline   Reply With Quote
Old 05-26-2008, 10:03 AM   #15
bulldog2277
Scooby Specialist

Member#: 157924
Join Date: Aug 2007
Chapter/Region: TXIC
Location: Valar Morghulis
Vehicle:
2007 Lotus Elise
2007 STI & 2013 Crosstrek

Default

Ok maybe a stupid question, but what splitter should be used on a bugeye with the 04/05 STI scoop? Will either of the JDM STI splitters work?
bulldog2277 is offline   Reply With Quote
Old 05-26-2008, 10:31 AM   #16
BIGSKYWRX
Scooby Guru

Member#: 7958
Join Date: Jul 2001
Location: Plains of Eastern Montana
Vehicle:
09 GH B+

Default

the v8 (04/05) scoop is much taller, as is the splitter- the v7 splitter wouldn't go to the top of the scoop and air would go right over the top

you'd want the 04/05 splitter w/ the 04/05 scoop
BIGSKYWRX is offline   Reply With Quote
Old 05-26-2008, 01:24 PM   #17
bulldog2277
Scooby Specialist

Member#: 157924
Join Date: Aug 2007
Chapter/Region: TXIC
Location: Valar Morghulis
Vehicle:
2007 Lotus Elise
2007 STI & 2013 Crosstrek

Default

Quote:
Originally Posted by BIGSKYWRX View Post
the v8 (04/05) scoop is much taller, as is the splitter- the v7 splitter wouldn't go to the top of the scoop and air would go right over the top

you'd want the 04/05 splitter w/ the 04/05 scoop

So the 04/05 splitter will fit on the 02/03 as long as the scoop is modeled after the 04/05?

Thanks for the info.
bulldog2277 is offline   Reply With Quote
Old 05-26-2008, 03:46 PM   #18
BIGSKYWRX
Scooby Guru

Member#: 7958
Join Date: Jul 2001
Location: Plains of Eastern Montana
Vehicle:
09 GH B+

Default

correct- of course the STi splitter/seal is larger to accommodate a larger intercooler, so it wouldn't work well w/ a smaller oe WRX intercooler
BIGSKYWRX is offline   Reply With Quote
Old 05-26-2008, 05:56 PM   #19
sc00ter
Scooby Specialist

Member#: 117767
Join Date: Jun 2006
Chapter/Region: RMIC
Location: Denver, CO
Vehicle:
2011 DGM STI Sedan
Torqued Performance Tuned

Default

Quote:
Originally Posted by sjs0433 View Post
Am I the only one that wishes they could run a 06/07 style scoop on an 04/05?
Absolutely not!! I want to do that REAL bad as well. I think the hawkeye scoop looks perfect but I have yet to find a place that has an 06/07 style scoop for the 04/05.
sc00ter is offline   Reply With Quote
Old 05-26-2008, 06:13 PM   #20
bulldog2277
Scooby Specialist

Member#: 157924
Join Date: Aug 2007
Chapter/Region: TXIC
Location: Valar Morghulis
Vehicle:
2007 Lotus Elise
2007 STI & 2013 Crosstrek

Default

Quote:
Originally Posted by BIGSKYWRX View Post
correct- of course the STi splitter/seal is larger to accommodate a larger intercooler, so it wouldn't work well w/ a smaller oe WRX intercooler
Thank you for the help
bulldog2277 is offline   Reply With Quote
Old 05-27-2008, 10:04 AM   #21
Unabomber
Big Ron
Moderator

Member#: 18062
Join Date: Apr 2002
Chapter/Region: MAIC
Location: I can save you a ton of cash
Vehicle:
on car parts so PM
me b4 j00 buy

Default

Help:

Zero/Sports 04/05 splitter LINK

GT SPEC 02/03 splitter LINK

The rubber shroud that fits on the OEM splitter is part number 90817FE210 and is around $40. This can be used to make an ill fitting splitter a perfect fitting splitter. Other materials have been used such as rubber weather seal material from Home Depot.

The little plastic clips that hold the rubber shround to the OEM/STI splitter are part number 90826FA000 and are 80 cents each.

The little plastic clips that hold the underhood fiberglass heat shield to the hood are part number 909130074 and are 80 cents each. You may need 1-3 of these as when fitting a new splitter you remove these clips and fold back the heat shield to remove/install a new splitter. If you are monkey fisted with removing these clips you can break them.

You will also see some splitters on eBay which are sheet metal splitters. They work with your factory unit and don't do much other than direct more airflow over the OEM intercooler and should not be thought of as a real splitter for a bigger intercooler.
Unabomber is offline   Reply With Quote
Old 05-28-2008, 01:42 AM   #22
bulldog2277
Scooby Specialist

Member#: 157924
Join Date: Aug 2007
Chapter/Region: TXIC
Location: Valar Morghulis
Vehicle:
2007 Lotus Elise
2007 STI & 2013 Crosstrek

Default

Unabomber - u da man!
bulldog2277 is offline   Reply With Quote
Old 05-28-2008, 02:40 AM   #23
Darryn
Scooby Newbie

Member#: 69370
Join Date: Aug 2004
Chapter/Region: E. Canada
Location: Toronto, Canada
Vehicle:
2007 Legacy GT
DGM

Default

It isn't noted in the information above, but most most splitters intended for the V7 STi should fit the Blobeye WRX scoop, although fitiment is not 100% perfect.

For example, I am running a 2004 WRX with a APS TMIC and APS Splitter designed for the V7 STi, the only fitiment issue is that the very back of the TMIC doesn't receive as much air from the splitter as it could. Otherwise, it fits and seals fine, under my WRX hoodscoop.

Some people were also asking about where I got the splitter, I got the splitter from the APS warehouse in Australia, when I was there on holiday 2 years ago.

Last edited by Darryn; 05-30-2008 at 01:55 AM.
Darryn is offline   Reply With Quote
Old 05-28-2008, 11:21 AM   #24
sc00ter
Scooby Specialist

Member#: 117767
Join Date: Jun 2006
Chapter/Region: RMIC
Location: Denver, CO
Vehicle:
2011 DGM STI Sedan
Torqued Performance Tuned

Default

Quote:
Originally Posted by Darryn View Post
It isn't noted in the information above, but most most splitters intended for the V7 STi should fit the Blobeye WRX scoop, although fitiment is not 100% perfect.

For example, I am running a 2004 WRX with a APS TMIC and APS Splitter designed for the V7 STi, the only fitiment issue is that the very back of the TMIC doesn't receive as much air from the splitter as it could. Otherwise, it fits and seals fine, under my WRX hoodscoop.
Thanks for the info. I will add that to the original post.

Would you mind unquoting my original thread though? It makes this page much longer than it needs to be and adds a lot more scrolling.


Also, would you mind sharing where you got the APS splitter?

Last edited by sc00ter; 05-28-2008 at 11:26 AM.
sc00ter is offline   Reply With Quote
Old 06-03-2008, 02:55 AM   #25
2006WRX4ME
Scooby Newbie

Member#: 134286
Join Date: Dec 2006
Chapter/Region: BAIC
Location: San Jose, Ca
Vehicle:
2006 WRX Limited
OBP

Default

You should also add that Zero/Sports makes an alternative to the STi splitter.

http://shop.edoperformance.com/zeros...ti-p-9335.html
2006WRX4ME is offline   Reply With Quote
