Default Martin's V-Mount STI Forester

So, i originally had a 2004 fxt that i did a bunch of stuff to like sti swap, 20g front mount etc....

i ended up hitting a center barrier head on after hydroplaning and i ended up buying a car from a buddy and it had:

Engine:

2008 STI VF48
sti top mount
perrin turbo inlet
SPT short ram intake
grimspeed catless uppipe thermal coated
ebay 3inch DP to custom made By Zfabmotorsports blast pipes
koyo aluminum radiator
cobb V3
walbro 255lph

Transmission & driveline:

2004 sti 6 speed trans
Oem clutch
2004 sti r180
sti driveshaft
custom hybrid STI/ forester XT rear axles
kartboy short shift kit and bushings
turn in concepts U joint bushings
group N transmission mount

Suspension
Feal 441 coils
2004 sti aluminum front control arms
2004 sti aluminum rear lateral links
whiteline front strut tower top brace
whiteline rear sway bar 22mm
whiteline front swaybar 22mm

Brakes:

Brembo 5x100
Hawk HP + pads
braided SS lines
grimspeed brake master cylinder brace

exterior:
complete JDM cross sports/ crossfire front bumper
Jdm forester sti front grill with hidden hella black magic fog lights
Jdm hid forester headlights custom black bezel
Jdm aluminum hood with STI hood scoop
JDM front fenders with working turn signals
hella super tones & hella twin tone horns
painted side mirrors (white)
Jdm side skirts with front spats
carbon fiber vinal wrapped C and B pillars, and hatch trim
2008 forester rear bumper
2008 forester sport black tail lights

Interior
JDM center console with cup holder
black HVAC control buttons
6 speed shifter trim
2004 sti black red stitched steering wheel
JDM business card holder
Pioneer double din stereo
JDM red hazard button
led interior bulbs
rear view mirror with home link
sti floor mats
STI Red metal pedals

XXR 527 with michelin pilot super sports 245/40/17



I ended up changing up things a few months after buying the car i swapped parts off my old forester -----blouch 20g XT, Grimspeed EWG, ID1000's Crawford AOS, Swapped my 2005 STI transmission that had 5000 miles on it, ACT 6puck sprung clutch

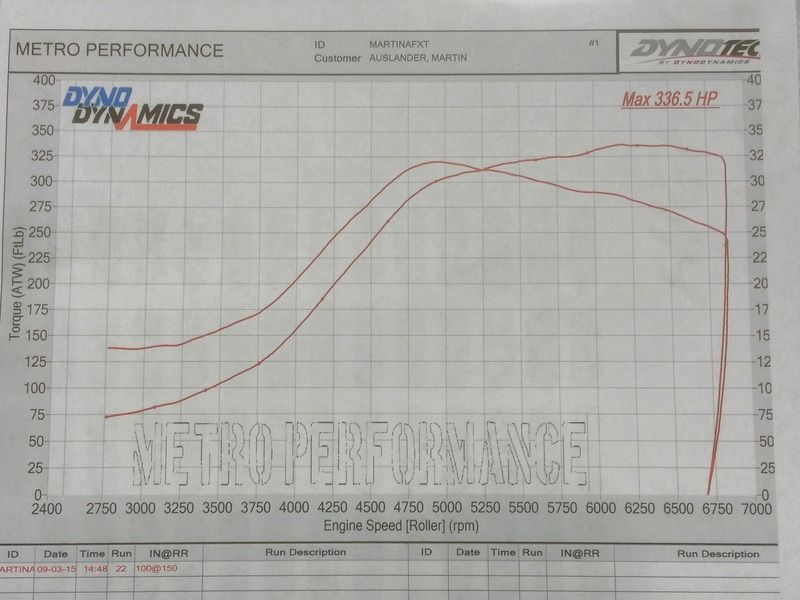

Car made 340/340 on 17lbs on 91

about 5 months after I made that, I started having very big issues with oil consumption. First i had the turbo rebuilt because that was the only thing (motor wise) i swapped off my old car that had the same oil consumption issue. I continued to have the issue, got a compression and leak down test. had 120psi all 4 cyl, and 8-10% leakage. Then proceeded to tear down the block, and had 2 cyl that had ringland failure and that prompted me to start building!!!


So, the new idea for the build for this car is to hit 600WHP AT elevation!

IAG stage 3 Plus block- customized with King bearings!

Radium surge tank
With under car -6 an braided fuel lines
Built heads - GSC springs, Ferrea valves - stock cams
GTX 30r or 35r
Vmount intercooler set up with Rotated manifold
Injectors 2000cc
Act 6 puck sprung
Possible Forward Facing turbo set up
Possibly Processwest Reverse manifold or 2.5i


SOOOOO!!!! I started buying parts!

ENGINE:
IAG Stage 3+ block
Manley Pistons
Manley I beam rods
Closed deck

Fully built heads – by Metro Performance
Ferrea endurance valves
Ferrea dual behive springs
Ferrea guides and seals
Stock STI cams

Borgwarner 64.5MM twin scroll turbo

Custom V mount Tube front end
twinscroll turbo manfiold
custom intercooler
custom radiator
Down pipe
Dumptubes
Intercooler pipes - Titanium
Intercooler pipe Clamps - Vanjen
Dual Tial 38 Wastegates


Air Intake Temp Sensor
Killer Bee oil pan
Pick up
Baffle

Je pro head gaskets – Copper coated
ACL oil pump
ARP 625+ head studs
2.5i intake Manifold – welded by Carz performance
Axle back blast pipes By Zfabmotorsports*
Tial Q Blow Off Valve
Grimspeed EBSC
ID2000cc
Walbro 450lph in pump
Radium surge tank w/ 450walbro
An -8 under car fuel lines
phenolic intake spacers

All the NEW fab work is being done by JC Fabworks LLC. in Colorado springs

There is way much more to come and its still in progress
