Here are pictures of GBOD (CREDIT TO RayfieldsWRX from clubwrx.net).

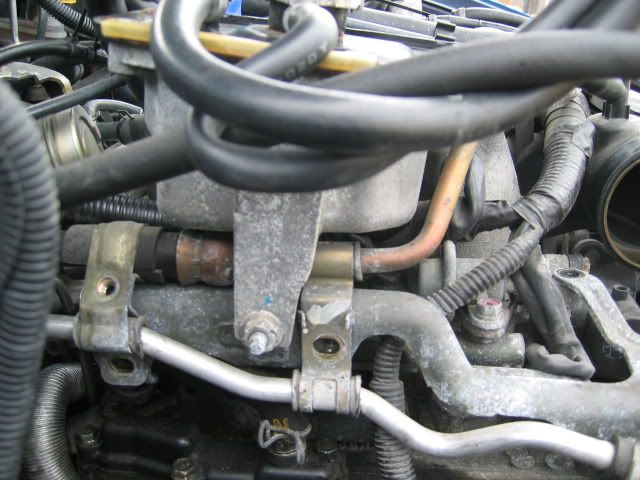

Remove 5 12mm bolts on bracket as well as a few other bolts.

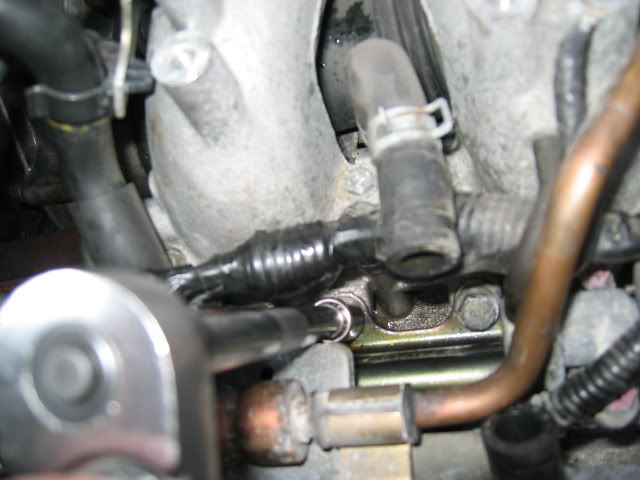

There are two hard to reach bolts (2 12mm bolts that hold bottom section of GBOD) hidden behind here. There are two options to tackle these two bolts. First option is to remove a breather cover by unbolting 3 10mm bolts or by using a small 12mm wrench to fit behind a breather cover. I went with later option with a good success.

Two bolts that are holding a fuel rail. Remove these (one on left is hard to remove, so wait until you remove bracket first)

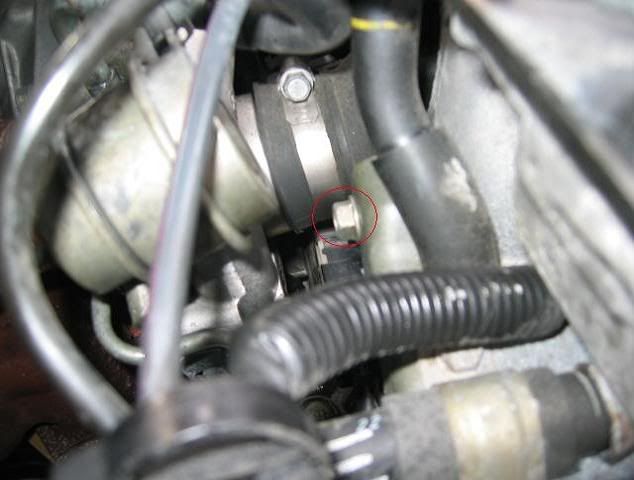

This bolt is hard to reach (use a wrench since there isn't enough space to use a socket in there). Picture not shown is another bolt that's located right below this 12mm bolt. Once again, you will have to use a wrench to reach down there. It's one of the most difficult bolt to reach during the install.

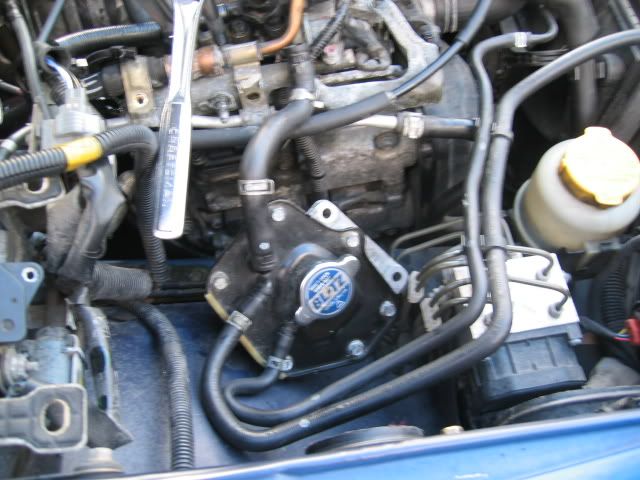

Remove a coolant reservior tank:
