mauldin · 02-19-2015, 10:05 PM

Just ordered my harness from the alternate source that Joe used. Compete harness for $49. Pm Joe for details. I'm glad I did.

* Registered users of the site do not see these ads.

sheep shagger · 02-20-2015, 05:17 PM

Just an update on satellite radio. If you don't plug in a satellite antenna you will get a warning message "check antenna" each time you turn on the head unit.
The closest adapter I've found is this:-

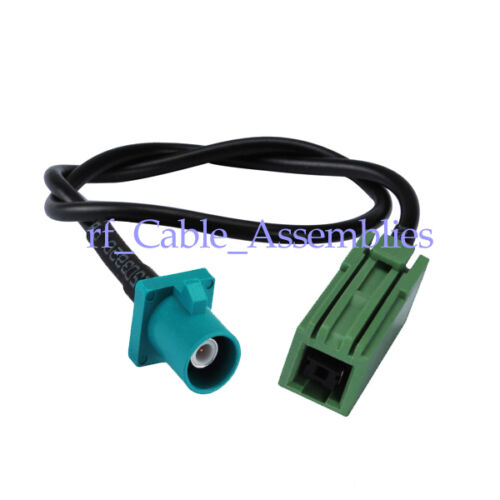

Fakra "Z" Plug male to HRS GT5-1S

It will require a sharp knife to cut the plastic ends a little as neither connector is a prefect fit, but they are both VERY VERY close. Round end is too deep, so you need to cut it back, the square end has one extra tab/corner that you just need to shave off.

You still need a real satellite antenna that you plug into the adapter. If you use a Sirius antenna it will work perfectly for audio, but the "now playing" song information will be missing and you will still get the "check antenna" warning message. If you use an XM antenna it will all work correctly and you will NOT get the warning message.
I always thought the Sirius and XM antennas were identical these days, but they are not.

mauldin · 02-20-2015, 11:13 PM

Quote:

Originally Posted by sheep shagger

Just an update on satellite radio. If you don't plug in a satellite antenna you will get a warning message "check antenna" each time you turn on the head unit.
The closest adapter I've found is this:-

Fakra "Z" Plug male to HRS GT5-1S

It will require a sharp knife to cut the plastic ends a little as neither connector is a prefect fit, but they are both VERY VERY close. Round end is too deep, so you need to cut it back, the square end has one extra tab/corner that you just need to shave off.

You still need a real satellite antenna that you plug into the adapter. If you use a Sirius antenna it will work perfectly, but you will still get the "check antenna" warning message, if you use an XM antenna it will work and you will NOT get the warning message.
I always thought the Sirius and XM antennas were identical these days, but they are not.

Do I need to find an xm antenna with the pink connector or any standard xm antenna?

Would this work?
http://www.amazon.com/gp/aw/d/B00AQ5T8RA/ref=mp_s_a_1_2?qid=1424491892&sr=8-2&keywords=Glass+xm+antenna&pi=AC_SX200_QL40&dpPl=1&dpID=41iEaLJbh8L&ref=plSrch

sheep shagger · 02-20-2015, 11:39 PM

Quote:

Originally Posted by mauldin

Do I need to find an xm antenna with the pink connector or any standard xm antenna?

Would this work?
Interior Glass Mount XM Radio Antenna with Pink FAKRA:Amazon:Car Electronics

The pink XM antennas are the old ones. They will probably work with the HU, but will not fit the adapter cable I posted. You want an antenna with the new style end (open silver plug) like this http://www.amazon.com/Mini-Magnetic-Satellite-Radio-Antenna/dp/B0079T93YY
I used the XM branded mini antenna.
http://www.ebay.com/itm/XM-Satellite...item54078828ac

Both my round and square Sirius branded antennas worked, but gave the check antenna warning.
http://www.amazon.com/Sirius-Radio-Dot-Micro-Antenna/dp/B001Q5DQOU/ref=sr_1_1?ie=UTF8&qid=1424493387&sr=8-1&keywords=Sirius+antennaand
http://www.amazon.com/Sirius-Magnetic-Mount-Antenna-Audio/dp/B006ZEW1AW/ref=sr_1_4?ie=UTF8&qid=1424493387&sr=8-4&keywords=Sirius+antenna

mauldin · 02-21-2015, 06:18 AM

Quote:

Originally Posted by sheep shagger

The pink XM antennas are the old ones. They will probably work with the HU, but will not fit the adapter cable I posted. You want an antenna with the new style end (open silver plug) like this http://www.amazon.com/Mini-Magnetic-.../dp/B0079T93YY

I used the XM branded mini antenna.
http://www.ebay.com/itm/XM-Satellite...item54078828ac

Both my round and square Sirius branded antennas worked, but gave the check antenna warning.
http://www.amazon.com/Sirius-Radio-D...Sirius+antenna
and
http://www.amazon.com/Sirius-Magneti...Sirius+antenna

Something like this should work then?
http://m.ebay.com/itm/371259428025

sheep shagger · 02-21-2015, 08:58 AM

Quote:

Originally Posted by mauldin

Something like this should work then?
http://m.ebay.com/itm/371259428025

Looks like a better option that the one I posted, as you'll only need to shave 1 end.

mauldin · 02-25-2015, 01:36 AM

Just got an email that my harness is shipping tonight!! Took less than a week from first email to being shipped out.

coper04 · 02-26-2015, 05:51 AM

Quote:

Originally Posted by sheep shagger

There are multiple people in this thread who have not got any reply in 4+ months. Look else where if you want this harness.

Do you know someone to make me a harness?
I am French, and here in EU, it is impossible, nothing exists !
it's for that
http://ae64.com/NaviTransplantharness.htm

mauldin · 02-26-2015, 08:17 AM

Quote:

Originally Posted by coper04

Do you know someone to make me a harness?
I am French, and here in EU, it is impossible, nothing exists !
it's for that
http://ae64.com/NaviTransplantharness.htm

You could follow the instructions in this thread to make your own or print all the info and take the instructions to a professional car audio installer in your area.

Most parts to assemble your own are originally made in China, so you should be able to source the parts online.

sheep shagger · 02-26-2015, 01:32 PM

Quote:

Originally Posted by coper04

Do you know someone to make me a harness?
I am French, and here in EU, it is impossible, nothing exists !
it's for that
http://ae64.com/NaviTransplantharness.htm

As mauldin said, it's really easy to make your own, but this place also seem to be making them. (by email request only).
www.autoharnesshouse.com

sheep shagger · 02-26-2015, 01:36 PM

Here is the finished harness.

This post has the list of parts

This is the pinout information

All connected

Ericksti · 02-26-2015, 08:00 PM

^ this is the post i followed to get my harness done. and all works 100%

scptaco · 02-27-2015, 01:44 PM

might need to get this

mauldin · 02-27-2015, 05:04 PM

Quote:

Originally Posted by Ericksti

^ this is the post i followed to get my harness done. and all works 100%

That's the same picture I emailed to autoharnesshouse.com and asked them to make me one. Looks alot cleaner than a few other installs I have seen. Thanks!!!

Ericksti · 02-27-2015, 05:07 PM

Yeah you ll see how much cleaner your audio will sound

mauldin · 02-27-2015, 08:11 PM

Harness just arrived from autoharnesshouse.com and fits perfect.

mauldin · 02-28-2015, 02:28 PM

Install went perfect!!

YouTube (Short URL)

Ericksti · 02-28-2015, 04:55 PM

Im glad everything went 100%

mauldin · 02-28-2015, 07:20 PM

Quote:

Originally Posted by Ericksti

Im glad everything went 100%

In my opinion this HU sound night and day better. Just waiting on the XM antena adapter and USB adapter that goes into the Fujitsu side to make it truly 100%. I'm confident the USB will connect right up and the XM will work. Crazy how easy the install went. I didn't have to add any wires or solder/crimp/cut into anything.

Via Bluetooth my iPhone 6 synced up and downloaded my phone book into the HU. OEM microphone, SWC, etc all worked.

mauldin · 03-01-2015, 12:48 AM

Might be a good deal if the bids don't get to high. BRZ Nav HU with all parts needed to install. Not mine. Just browsing ebay and saw it.

http://m.ebay.com/itm/121581822403

coper04 · 03-02-2015, 03:52 AM

thank you, I'll try to contact autoharnesshouse.com

mauldin · 03-02-2015, 09:16 AM

Used to Navigation on the way to work while streaming Bluetooth audio. Worked perfect. Not sure where all the complaints about the OEM Nav (around the web) is coming from.

Ericksti · 03-02-2015, 09:20 AM

Yeah this navi unit work flawlessly ...its just awsome

mauldin · 03-05-2015, 09:06 AM

I was just told that my pictures haven't been showing. So here are a couple.

Ericksti · 03-05-2015, 05:10 PM

Looks awsome
