Hi, everyone this is Bryan from Racer X engineering and I proud to introduce a new kit to our line of quality products. This kit is a addition to our '05-'09 LGT and '08+WRX kits that we have been selling for over a year. You can read about our great customer service and products on legacygt, 3GWRX, and Nasioc. The '08 STi fitment kit is now complete.



Here are some front views of the FMIC on '08+WRXs



Here is the final price for the coating
$95 per intercooler

$80 per set for powder for tubing

$125 per set for ceramic for tubing

That's $175 powercoat and $220 for ceramic coating. Like I said before plus $10
for my time and gas. Below is more info on the coatings

Thermal Dispersement- This coating on a radiator or intercooler will lower the overall temperature by 18-20%. It works by eliminating the hot spots! All radiators and intercoolers have hot spots. This coating is a satin black in color and is a wet application that is baked in.

Ceramic Satin Black thermal coating- This is an air cure flat/semi satin black color. This material handles heat up to 3000 degrees. By having such a high heat factor this makes for internal temperatures to stay much cooler by keeping the hot air out of a tube. This coating is widely used in the Harley motorcycle market for there exhaust to make the outside temperatures much lower and keep the heat in the pipes.

Here are pictures of the coated kits. Here are the powder coated kit



and this is the Ceramic coated kit


With both kits you get the intercooler coated in thermo dispersant.


-The kit will come with black couplers and stock BOV flange.
-you keeps your stock crash beam
-t-clamps
-clears just about all intakes. Some have even got stock and Cobb airbox to fit with my kit.
-you don't even have to trim your bumper skin so if you ever want to go back to stock and/or trade it in you car won't be hacked up like other kits.
-I will also include flange that will let you run '05-'09LGT/'08+WRX style turbos. So you can run any turbo you want and no extra cost.
- one year warranty against defects

I'm also including the flange because I'm doing a test fit on a '05 WRX next weekend. With that flange it allows you 2L guys a cheap turbo upgrade to all of those LGT vf40 that are out there. Because some of those bigger turbo maybe too laggy for the 2 liter owners. I going to put the Vf40 on that test car and see what numbers it makes.

I will be starting a group buy on 3GWRX, Nasioc, and Legacygt. I need a minimum of 10 orders to start production with a $350 deposit. If we don't reach that number I will give everyone a full refund. It will take about month and a half for the kits to be made and be ready for shipping. The regular price will be shipped $699. But for the Group buy the price will be $600 shipped to get this started.
Let me know if you have any questions. Bryan
Paypal [email protected]
The GB will close on 3/18/11

1.JRSRED10

Bryan,

Couple questions: Is this tube and fine or bar and plate, what are the dimensions, psi drop, what hp is this capable of, size of piping, and do you offer thermal dispersant coating in colors?

Can you post your paypal here as well?

1. It is a bar and plate intercooler

2. IC overall 29"x9"x2.5"

3. With IC it's a bit of a trade off between pressure drop and efficiency. I give will you real numbers not percents that mean nothing. When I swapped FMICs(I had the XO2 FMIC that I designed for LGT) to the Racer X FMIC without a tune I had about 1/2 psi drop from my boost target of 20 psi. After a tune(or change your pill if you don't have a EBCS) I easily got my target back and was able to add 2 deg more timing with no knock which helps to make more torque. Most customers are reporting between 40 and 60 LBS-ft with a vf40 over aftermarket TMICs. You can read the post on legacygt.com

4. Our test car was a '08 legacyGT Spec. B and it made 400whp on e85 with a 68HTA, stock block and bolt-ons and he wasn't maxing the core yet. He is now making it into a show car and going for 450whp with a bigger turbo and injectors

5. The pipe size varies from 2" leaving the turbo to 2.50" on the cold side.

6. Coater says that he can do other colors.

Any questions let me know.

saounds like a good deal...how many vehicles have you tested this product on so far?

In the last year I have sold over 120 kits with people posting great results and feed back. You can check post on Legacygt.com (My ID is "itsme") , 3gwrx, and on this site.

Put me down, Ceramic Coating! PM Paypal info!

GB list

1.JRSRED10
2.ketchupdtf -Ceramic coated

Also the this kit pipes are aleast 2 feet shorter then most kits on the market.

To the top

Gb bump

sorry but that is the worst pipe routing i have seen on a fmic kit. surely there has to be a better way.

also where is the flange for the bypass valve? and did you have to remove the air pump?

What do you mean wrong routing of the pipes? I don't understand your question about the routing. The pipes are about a 2 feet shorter then other kits. You realize that is a Sti turbo and not a '08+WRX turbo? Every kit is routed differently.

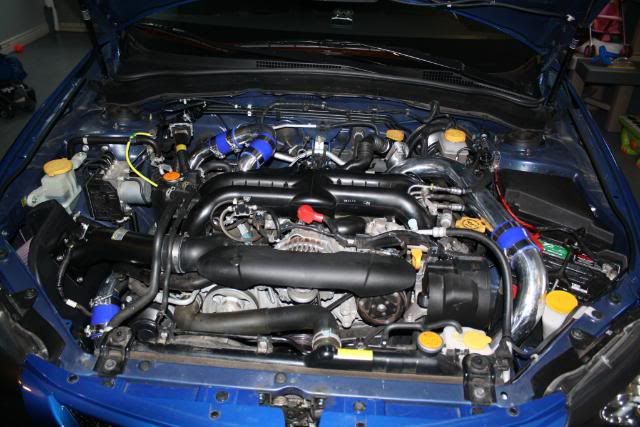

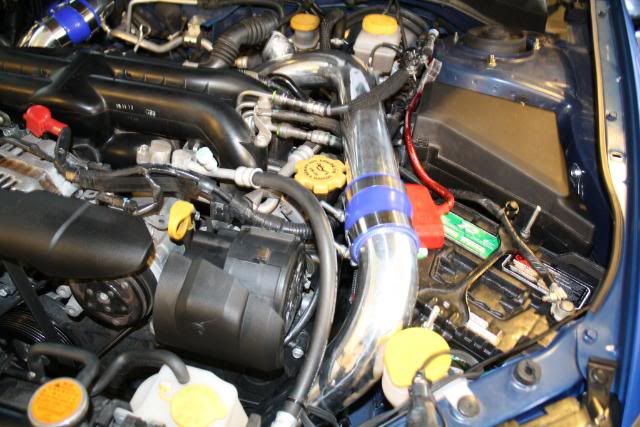

That is a picture of the final test fit before the flange was installed. It will come with a BOV flange. The owner of the STi had already removed his air pump before the test fit. Here is a picture of how it will fit with an air pump This is a picture of a '08 WRX with an air pump.

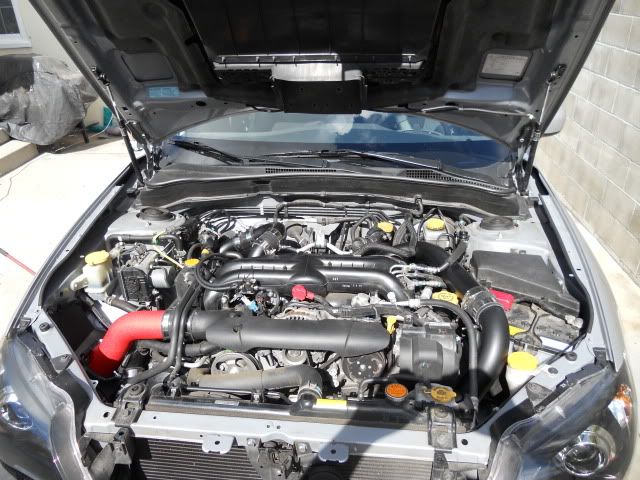

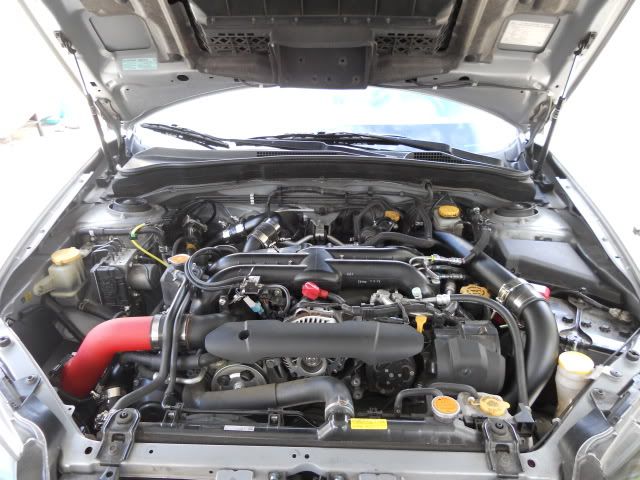

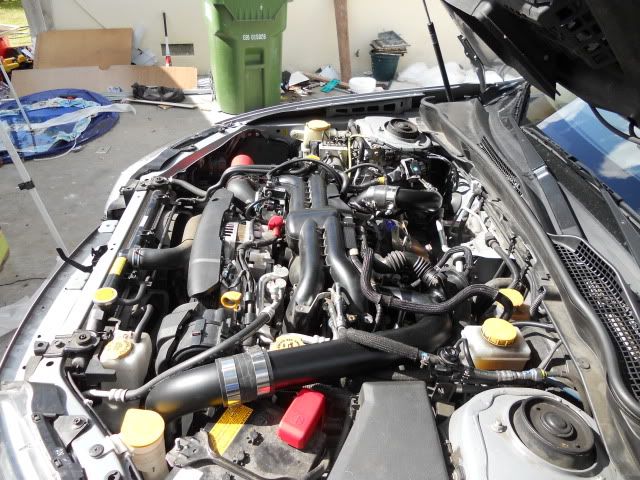

Here are the pictures of the black powder kit installed on a '08 WRX. It gives that stealth look very clean and subtle. It will fit the same on LGT and STI's

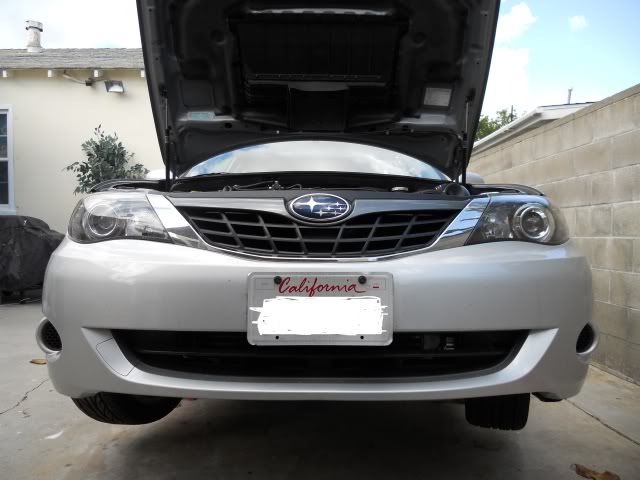

You can't even see the FMIC for that stealth look.

bump for gb ending 2/27/11

Racerx will you still be selling to us if their is no one else for GB?

If we get closer to 10 yes. It kind of hard to justify a production for just 2 kits. If there is no interest it doesn't make sense. I may do a short run in march if the gb doesn't happen. I'll let you know when this gb is over.

Ok well I sent you some cash so hopefully it happens. Otherwise off with the crash beam I guess...

The reason I made this kit is because I got a lot of requests to make it. Hopefully all of those people will join the gb.

Bump!

Hopefully we can at least try the kit out and provide some more results for STI guys and gals to consider.

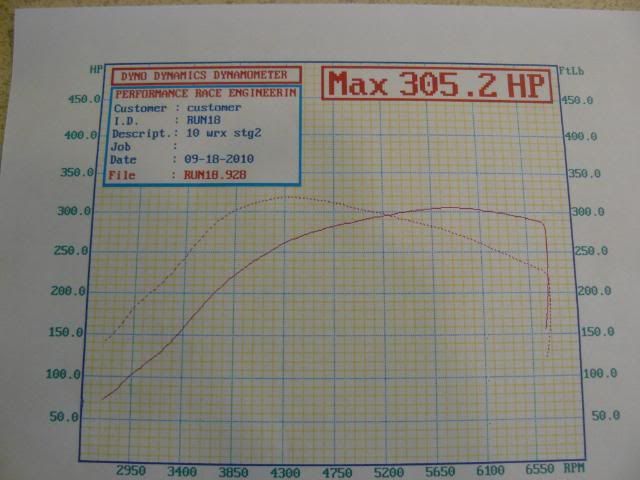

II have two paid in full orders and if this GB falls through I will place an order in about two weeks. The kit have been selling similar setup for '05-'09LGT and '08+ WRXs for over a year and have been getting great reviews ( http://legacygt.com/forums/itrader.php?u=9198) and my kit has been reported to make on average 30+ whp and 60+lbs more then aftermarket TMIC. These aren't numbers that I'm making up. They are from actual posts on legacygt.com and 3GWRX.com. Like this '10 WRX




Maybe people here are worried that I'm a new vendor here, about the quailty of the kit, how well it performs, and will I stand behind it. I can tell you yes. When I found out some people were having fitment issuse when using Sti style turbos I had a new pipe made and shipped it to everyone free of charge. Even to the ones that didn't have a problem. Just because it was the right thing to do. I started as out as a Subie owner( '04 WRX Wagon and now a 340whp DD '05 LGT wagon). I have been burn on aftermarket parts that don't work or fit like advertised. So I don't do that to my customers. That why I post pictures of kits install not just a bunch of pipes on a table. So you can see what you are gettting.

I have a huge install thread (over 700 post and 22,000 veiws) http://legacygt.com/forums/showthrea...ll-131072.html to show you what it takes to install the FMIC and get input from other customers that I'm still active in and always there to help.

I'm not the greatest salesman But, I feel I make a good product at a fair price.

Amen! I'm a believer that's why I'm eager to get it on my car. People like to copycat good results and it can be car specific. I think being on iwsti might help for sti peeps too. I will definitely post results here and there once my project is done. Let us know.

I moved the GB back to 3/18/11 and brought the kit down to $600 shipped to get this GB going. Bryan

Bump to the top
